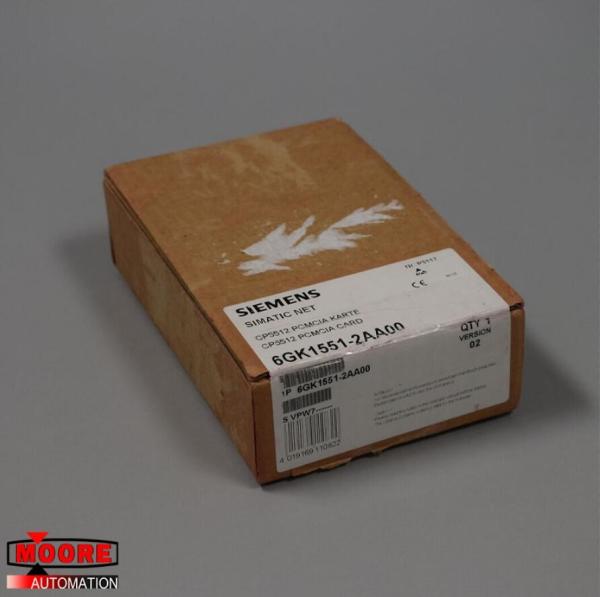

| Brand/Manufacturer | Siemens/GERMANY |
| Part Number | 6GK1551-2AA00 |
| Alternate Part Number | 6GK1551-2AA00 |
| Description | Communication Card |
| Dimennsions | WHD 85* 5*54mm |
| Weight | 0.13kg |
Product Details
Communications processor CP 5512 PC Card (Cardbus, 32 Bit) for connection of a PG or Notebook to PROFIBUS or MPI
Transfer rate-at the 1st interface / acc. to PROFIBUS 9.6 kbit/s ... 12 Mbit/s
Interfaces:
Number of electrical connections-at the 1st interface / acc. to PROFIBUS 1
Type of electrical connection-at the 1st interface / acc. to PROFIBUS 9-pin Sub-D socket (RS 485)
Supply voltage, current consumption, power loss
Type of voltage / of the supply voltage DC
Supply voltage -1 / from backplane bus 3.3 V
Relative symmetrical tolerance / at DC-at 3.3 V 5 %
Consumed current-1 / from backplane bus / at DC / maximum 0.52 A
Power loss [W]-1.8 W
Product features, product functions, product components / general:
Number of plug-in cards of same design / plug-in / per PC station 1
Performance data:
Performance data / open communication:
Software / for open communication / by means of SEND/RECEIVE / required -Yes, SOFTNET-PB DP / SOFTNET-PB DP Slave /
SOFTNET-PB S7
Number of possible connections / for open communication / by means of SEND/RECEIVE / maximum 50
Performance data / PROFIBUS DP:
Software / for DP master function / required Yes, SOFTNET-PB DP
Service / as DP master: DPV0-Yes; DPV1-No; DPV2-No
Number of DP slaves / on DP master / usable 64
Amount of data:
of the address area of the inputs / as DP master / total 7808 byte
of the address area of the outputs / as DP master / total 7808 byte
of the address area of the inputs / per DP slave 244 byte
of the address area of the outputs / per DP slave 244 byte
of the address area of the diagnostic data / per DP slave 244 byte
Software / for DP slave function / required Yes, SOFTNET-PB DP slave
Service / as DP slave: DPV0-Yes; DPV1-No
Amount of data:
of the address area of the inputs / as DP slave / total 122 byte
of the address area of the outputs / as DP slave / total 122 byte
