| Brand/Manufacturer | Siemens/GERMANY |
| Part Number | 6GK1161-6AA01 |
| Alternate Part Number | 6GK1161-6AA01 |
| Description | Communication Processor |
| Dimennsions | WHD 18* 107*167mm |
| Weight | 0.11kg |
Product Details

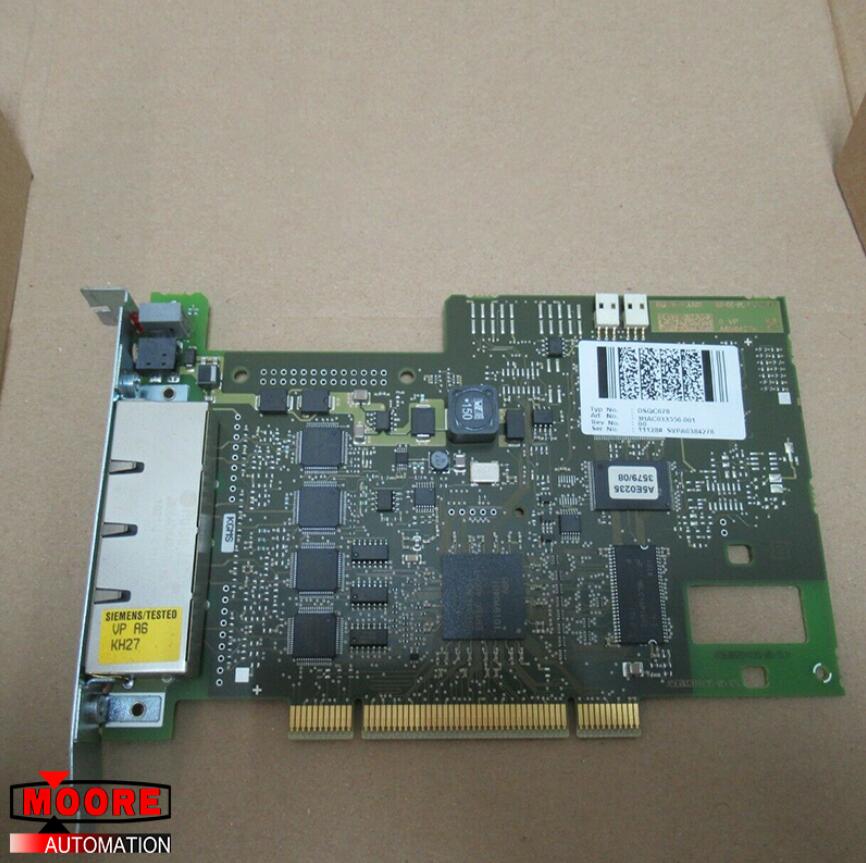

Communications processor CP 1616 PCI card (32 bit; 33/66M Hz; 3.3/5 V) with ASIC ERTEC 400 for connection to PROFINET IO with 4-port real-time switch (RJ45) via development kit DK-16XX PN IO; NCM PC.
Performance data / PROFINET communication / as PN IO controller:
Software / for PROFINET IO communication / required No
Number of PN IO devices / on PROFINET IO controller / usable / total 128
Number of PN IO IRT devices / on PROFINET IO controller / usable 64
Amount of data:
as user data for input variables / as PROFINET IO controller / maximum 8192 byte
as user data for input variables / as PROFINET IO controller / maximum 8192 byte
as user data for input variables per PN IO device / as PROFINET IO controller / maximum 1430 byte
as user data for output variables per PN IO device / as PROFINET IO controller / maximum 1430 byte; Performance data / PROFINET communication / as PN IO device
Amount of data:
as user data for input variables / as PROFINET IO device / maximum 1430 byte
as user data for input variables / as PROFINET IO device / maximum 1430 byte
as user data for input variables / for each sub-module as PROFINET IO device 254 byte
as user data for input variables / for each sub-module as PROFINET IO device 254 byte
as user data for the consistency area for each sub-module 254 byte
Number of submodules / per PROFINET IO-Device 64
Product functions / management, configuration, engineering:
Product function / MIB support Yes
Protocol / is supported
SNMP v1 Yes
DCP Yes
LLDP Yes
Configuration software / required Included in scope of supply
Identification & maintenance function
I&M0 - device-specific information Yes
I&M1 – higher-level designation/location designation Yes
I&M2 - installation date Yes
I&M3 - comment Yes
I&M4 - signature Yes
I&M4 - OEM data Yes
Standards, specifications, approvals:
Standard
for EMC 2004/108/EC
for safety / from CSA and UL CAN/CSA C22.2 & UL 60950-1
for emitted interference EN 61000-6-3, EN 61000-6-4
for interference immunity EN 61000-6-1, EN 61000-6-2
Certificate of suitability
CE marking Yes
C-Tick Yes
