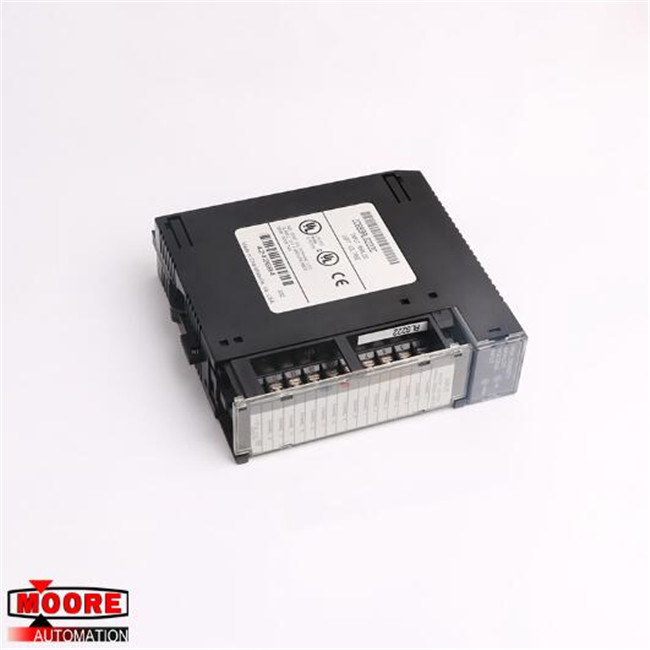

IC693ALG222 GE Analog Input, Voltage 16 Single/8 Differential Channels
⇒ Click here for good price IC693ALG222
| Brand/Manufacturer | GE/USA |
| Part Number | IC693ALG222 |
| Alternate Part Number | IC693ALG222 |
| Description | MOTOR SERVO |
| Dimennsions | 3.6x13x13.5cm |
| Weight | 0.36kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The IC693ALG222 is a 16-Channel Analog Voltage Input module for the GE Fanuc 90-30 Series. This PLC will give you 16 single-ended or 8 differential input channels. The Analog Input features easy-to-use configuration software for 2 input ranges: from -10 to +10 and 0 to 10 volt. This module converts the analog signals into digital signals. The IC693ALG222 receives two input signals which are unipolar and bipolar. The unipolar signal ranges from 0 to +10 V whereas bipolar signal ranges from -10V to +10V.This module can be set up in any of the I/O slots in a 90-30 Programmable control system. There will be connector block mounted on module for connecting to user devices.
The number of channels in the IC693ALG222 may be single ended (1 to 16 channel) or differential (1 to 8 channel). The power requirement for this module is 112mA from 5V bus, and also it requires 41V from 24V DC supply to power the converters. The two LED indicators indicate the status of user power supply the module’ status. These two LEDs are MODULE OK, which gives the status regarding power-up, and POWER SUPPLY OK, which checks whether the supply is above the minimum required level. The IC693ALG222 module is configured either using logic master programming software or via Handheld programming. If the user chooses to program the module via Handheld programming, he can only edit active channels, not active scanned channels. This module uses the %AI data table to record analog signals for the use of the programmable logic controller.
